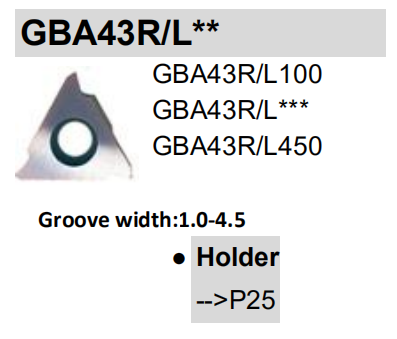

GBA**
Small diameter Grooving Inserts features:
Main Application:
Finishing Machnining for Stainless Steel, Steel,Cast Iron
|
Models |
Grade |
Depth of Cut (mm) |
Corner Radius (mm) |
Length(mm) |
Thickness (mm) |
Internal circle Dia.(mm) |
|
CFM0156 |
CFM1551 |
|
GBA43R/L100 |
● |
● |
3.0 |
0.1 |
23 |
4.3 |
5.5 |
|
GBA43R/L150 |
● |
● |
4.0 |
0.2 |
23 |
4.3 |
5.5 |
|
GBA43R/L200 |
● |
● |
4.0 |
0.2 |
23 |
4.3 |
5.5 |
|
GBA43R/L250 |
● |
● |
5.0 |
0.2 |
23 |
4.3 |
5.5 |
|
GBA43R/L300 |
● |
● |
5.0 |
0.2 |
23 |
4.3 |
5.5 |
|
GBA43R/L350 |
● |
● |
5.0 |
0.2 |
23 |
4.3 |
5.5 |
|
GBA43R/L400 |
● |
● |
5.0 |
0.2 |
23 |
4.3 |
5.5 |
|
GBA43R/L450 |
● |
● |
5.0 |
0.2 |
23 |
4.3 |
5.5 |
|
GBA43R/L500 |
● |
● |
5.0 |
0.2 |
23 |
4.3 |
5.5 |

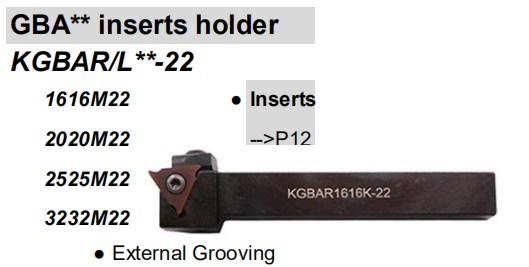

There are suitalbe Tools holder for option:
CFM0156:
Equivalent to international standards M10-M15,Using ultrafine particles(Graininess:03~0.4u)
Original imported materials,hardness:93.5-94HRA,strength:4200,Suitable for Finishing process of stainless steel,
cast iron,steel etc.With material(raw material) performance, Grade with excellent wear-resistant and shock resistance.
Our Company use it for finishing processing of PVD Coated front turning,back turning inserts(Coated surface color Purple)
CFM1551:
Equivalent to international standards M10-M15,Using ultrafine particles(Graininess:03~0.4u)
Original imported materials,hardness:93.5-94HRA,strength:4200,Suitable for Finishing process of stainless steel 304\ 316,Titanium alloy etc.
With material(raw material) performance, Grade with excellent wear-resistant and shock resistance.
Our Company use it for finishing processing of PVD Coated front turning,back turning inserts(Coated surface color Black)
