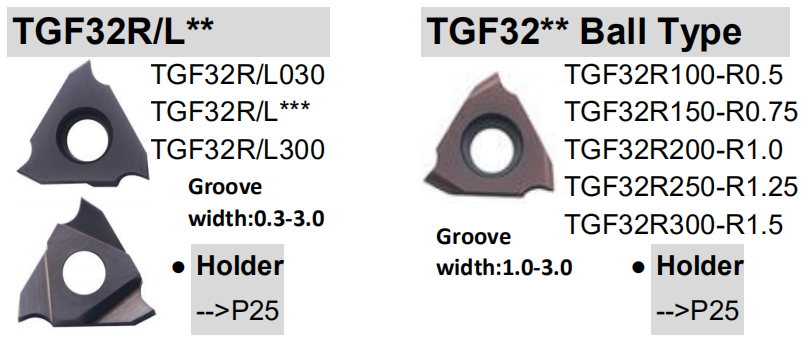

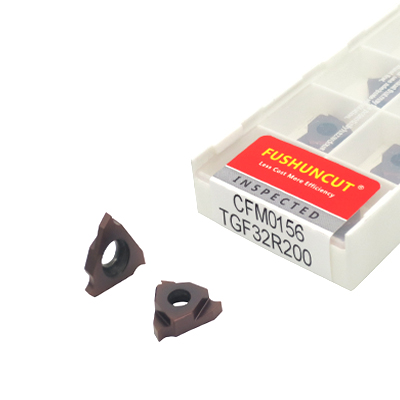

TGF32R**
Small Tools Grooving Inserts features:
Main Application:
Finishing Machnining for Stainless Steel, Steel,Cast Iron,Alluminum,
Cermet Grooving Inserts for option！
|
Models |
Grade |
Depth of Cut (mm) |
Corner Radius (mm) |
Length
(mm) |
Thickness (mm) |
Internal circle Dia.(mm) |
|
CFK0010 |
CFM0156 |
CFM1551 |
CFN0010 |
|
TGF32R/L030 |
● |
● |
● |
● |
0.9 |
0.05 |
16 |
3.2 |
4.5 |
|
TGF32R/L050 |
● |
● |
● |
● |
1.3 |
0.05 |
16 |
3.2 |
4.5 |
|
TGF32R/L070 |
● |
● |
● |
● |
1.4 |
0.1 |
16 |
3.2 |
4.5 |
|
TGF32R/L100 |
● |
● |
● |
● |
2.3 |
0.1 |
16 |
3.2 |
4.5 |
|
TGF32R/L175 |
● |
● |
● |
● |
2.5 |
0.1 |
16 |
3.2 |
4.5 |
|
TGF32R/L200 |
● |
● |
● |
● |
2.6 |
0.1 |
16 |
3.2 |
4.5 |
|
TGF32R/L300 |
● |
● |
● |
● |
3.0 |
0.15 |
16 |
3.2 |
4.5 |
|
TGF32R100-R0.5 |
|
● |
|
|
2.3 |
|
16 |
3.2 |
4.5 |
|
TGF32R150-R0.75 |
|
● |
|
|
2.5 |
|
16 |
3.2 |
4.5 |
|
TGF32R200-R1.0 |
|
● |
|
|
2.6 |
|
16 |
3.2 |
4.5 |
|
TGF32R250-R1.25 |
|
● |
|
|
3.0 |
|
16 |
3.2 |
4.5 |
|
TGF32R300-R1.5 |
|
● |
|
|
3.0 |
|
16 |
3.2 |
4.5 |

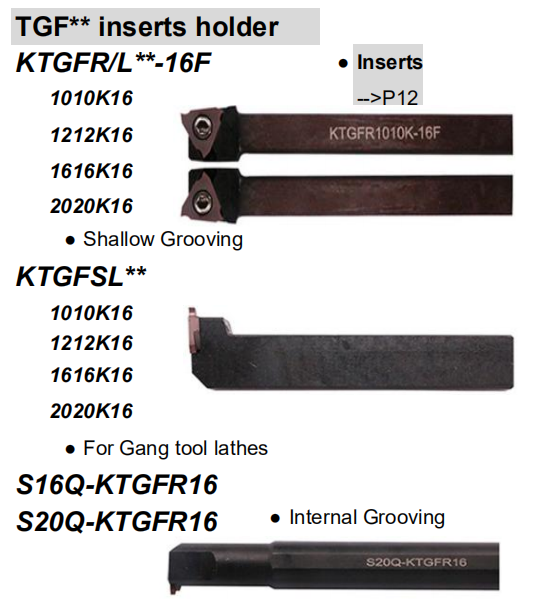

There are suitalbe Tools holder for option:
CFK0010:
Equivalent to international standards K10,Using ultrafine particles(Graininess:0.4~0.6u),strength:2800,hardness:92.8~93.1 HRA,
Suitable for Machining Non-ferrous metals as Alluminum Alloy,Copper Alloy etc.
Our company use this grade for Alluminum Processing.
CFM0156:
Equivalent to international standards M10-M15,Using ultrafine particles(Graininess:03~0.4u)
Original imported materials,hardness:93.5-94HRA,strength:4200,Suitable for Finishing process of stainless steel,
cast iron,steel etc.With material(raw material) performance, Grade with excellent wear-resistant and shock resistance.
Our Company use it for finishing processing of PVD Coated front turning,back turning inserts(Coated surface color Purple)
CFM1551:
Equivalent to international standards M10-M15,Using ultrafine particles(Graininess:03~0.4u)
Original imported materials,hardness:93.5-94HRA,strength:4200,Suitable for Finishing process of stainless steel 304\ 316,Titanium alloy etc.
With material(raw material) performance, Grade with excellent wear-resistant and shock resistance.
Our Company use it for finishing processing of PVD Coated front turning,back turning inserts(Coated surface color Black)
CFN0010:
Imported Cermet raw material,Grade for Cermet,Equivalent to international standards P15,M15,K15,hardness:92.5-93.5HRA,strength:2300.
Grade with excellent wear-resistant and heat-resistance.Suitable for Finishing process of Low carbon steel HRC<35°,cast steel,alloy steel,cast iron etc.
Our company use it for boring inserts and front turning inserts etc..
